4060 Aluminum Extrusion for 40×60 T-Slot Modular Frame Systems
The 4060 aluminum extrusion profile is a 40mm × 60mm modular aluminum profile designed for medium-duty and stronger industrial structures, workstation frames, machine guards, conveyor supports, automation equipment frames, equipment stands, machine bases, protective enclosures and custom modular frame systems. Compared with smaller aluminum extrusion profiles such as 3060, 3030 or compact 20 series profiles, the 4060 profile provides a larger 40 series structure, better rigidity and improved support for frames that require higher stability, stronger load capacity and industrial-grade assembly performance.
This 4060 aluminum T-slot profile features open T-slots, allowing T-slot nuts, corner brackets, bolts, internal connectors, joining plates, panels, sensor mounts, leveling feet, caster wheels and other accessories to be installed from multiple directions. Compared with welded steel structures, a T-slot aluminum framing system is easier to assemble, adjust, expand, disassemble and rebuild. This makes it suitable for users who need a flexible structure that can be modified as project requirements change.
4060 Aluminum Extrusion Applications

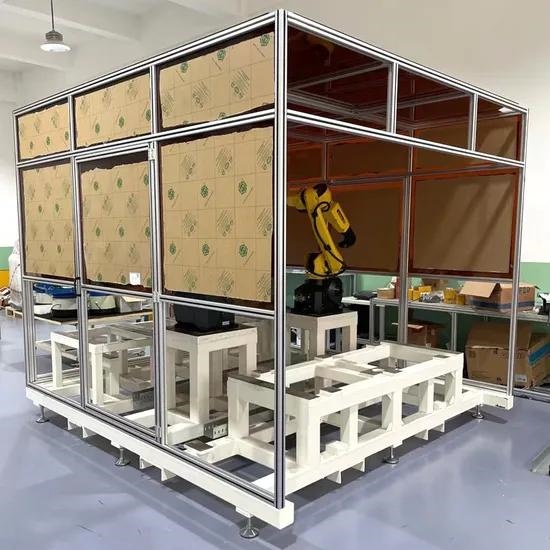

The 4060 aluminum T-slot profile is widely used in modular workstations, machine guard frames, conveyor support structures, automation equipment frames, equipment stands, equipment racks, machine bases, inspection fixtures, panel mounting structures, laboratory racks, protective covers and custom modular industrial structures. For industrial users, it can be used as a strong frame component for automation support, assembly line fixtures, equipment guards, customized workstation systems and production line structures. For DIY and maker users, it can also be used for stronger CNC or laser enclosure frames, workshop structures, display frames, tool stands and custom modular builds.
The 4060 aluminum extrusion profile is suitable for projects that need more strength, better rigidity and higher frame stability than 30 series aluminum profiles while still keeping a modular and easy-to-assemble structure. For heavy equipment bases, long-span machine structures, high-load industrial frames or structures that require higher load capacity, larger aluminum profiles such as 4080, 40120, 80120 or other heavy-duty series may be recommended. Choosing the correct aluminum profile size helps improve frame stability, reduce vibration and avoid unnecessary material cost. If you are not sure which profile size is suitable for your project, Melorae Supply can help recommend a profile series based on your frame size, load requirement, installation method and usage environment.
This 40×60 aluminum profile can be supplied with matching accessories, including T-slot nuts, corner brackets, bolts, internal connectors, joining plates, end caps, leveling feet, caster wheels and panel mounting components. These accessories allow customers to build a complete modular aluminum frame system instead of purchasing only individual aluminum bars. Custom cutting, drilling, tapping and accessory matching are available according to your drawing, sketch, sample photo or required dimensions.
The standard surface finish is silver anodized, providing a clean industrial appearance and improved corrosion resistance for indoor workshop, factory and equipment applications. Black anodized finish and other surface options may be available depending on order quantity and project requirements. The modular T-slot design also helps reduce assembly time and makes future maintenance or structural changes easier.
Melorae Supply focuses on modular industrial structure solutions, not only individual aluminum extrusion profiles. We can support customers with aluminum profile selection, connector matching, custom length cutting and complete frame quotation for workstations, machine guards, lean production systems, storage racks, conveyor supports, assembly line fixtures, automation support structures and custom modular frames.
Key Features
- 40mm × 60mm aluminum T-slot extrusion profile
- Stronger structure than 3030 and 3060 aluminum extrusion profiles
- Suitable for medium-duty and stronger modular frames
- Rectangular 40 series profile design for improved rigidity and frame stability
- Compatible with T-slot nuts, brackets, fasteners and connectors
- Clean anodized surface for corrosion resistance and easy maintenance
- Easy to cut, drill, tap, assemble, modify and expand
- Custom length cutting and accessory matching available
- Suitable for industrial, workshop, DIY and automation applications
Applications
- Medium-duty machine frames
- Modular workstation frames
- Machine guard structures
- Conveyor support frames
- Automation equipment frames
- Equipment racks and equipment stands
- Machine bases and support structures
- Protective enclosures
- Display racks and display stands
- Inspection fixtures
- Sensor mounting frames
- Laboratory and workshop racks
- Panel mounting structures
- DIY modular structures
- CNC and laser enclosure frames

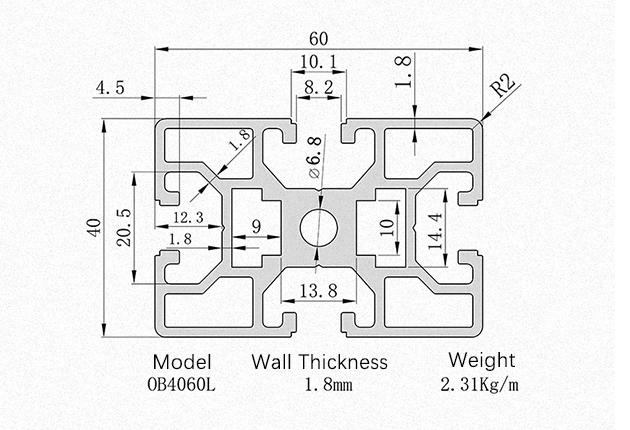

Specifications
- Product Name: 4060 Aluminum T-Slot Extrusion Profile
- SKU: AP-4060-EU
- Profile Size: 40mm × 60mm
- Series: 4060 Series
- Standard: European Standard
- Slot Type: T-Slot
- Slot Width: 8mm / 8.2mm
- Material: Aluminum Alloy
- Common Grade: 6063-T5 / 6061-T6
- Surface Finish: Silver Anodized
- Optional Finish: Black Anodized
- Standard Length: 6.00m / 6.02m
- Custom Length: Available
- Approx. Weight: 2.40–2.98kg/m
- Processing Options: Cutting, drilling, tapping, connector matching and frame assembly
- Typical Applications: Workstations, machine guards, conveyor supports, automation equipment, equipment racks, machine bases and modular structures
Related 4060 Aluminum Extrusion Resources
For lighter modular frame structures, you can compare this product with our 3060 aluminum extrusion profile and 30120 aluminum extrusion profile. For stronger industrial frames, larger aluminum profile series such as 4080, 40120 and 80120 may be recommended depending on load capacity, frame size and application requirements.
For general information about aluminum materials and industrial aluminum applications, you may also refer to The Aluminum Association.
FAQ
Q1: What is 4060 aluminum extrusion used for?
4060 aluminum extrusion is used for modular workstation frames, machine guards, conveyor support structures, automation equipment frames, equipment racks, machine bases, protective enclosures, inspection fixtures and medium-duty industrial structures.
Q2: What does 4060 mean in aluminum extrusion?

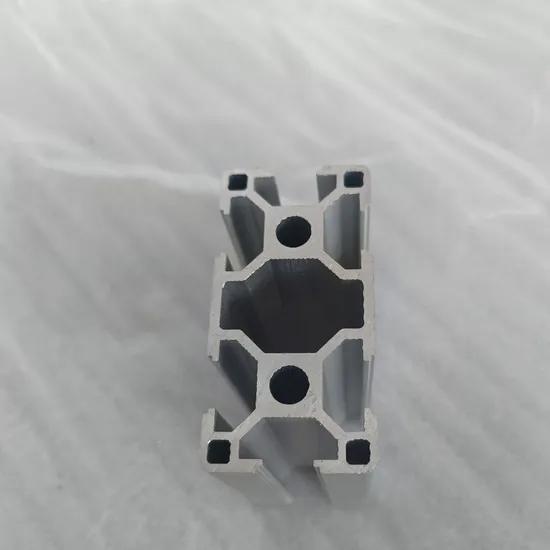

4060 means the aluminum profile has a 40mm × 60mm cross section. It is a rectangular profile size commonly used in 40 series modular aluminum framing systems.
Q3: What is the difference between 3060 and 4060 aluminum extrusion?
3060 aluminum extrusion has a 30mm × 60mm cross section, while 4060 aluminum extrusion has a 40mm × 60mm cross section. The 4060 profile provides a larger 40 series structure, better rigidity and stronger frame stability than 3060.
Q4: Is 4060 aluminum extrusion suitable for machine frames?
Yes. 4060 aluminum extrusion is suitable for medium-duty machine frames, equipment racks, automation fixtures, conveyor supports and industrial support structures. For heavy-duty equipment bases or long-span high-load frames, larger profiles such as 4080, 40120 or 80120 may be recommended.
Q5: Can the 4060 aluminum extrusion be cut to custom length?
Yes. Custom cutting is available. Drilling, tapping and accessory matching can also be provided according to project requirements.
Q6: What accessories are compatible with 4060 T-slot profiles?
Common accessories include T-slot nuts, corner brackets, bolts, internal connectors, joining plates, end caps, leveling feet, caster wheels and panel mounting parts.

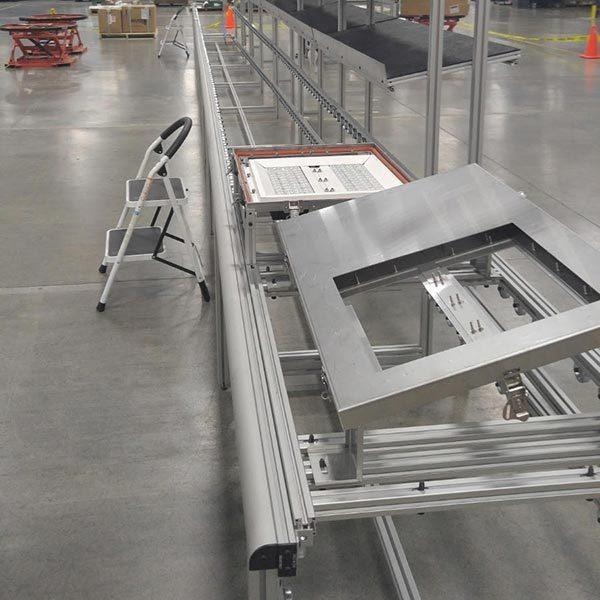

Q7: Can 4060 aluminum extrusion be used for conveyor support frames?
Yes. 4060 aluminum extrusion can be used for conveyor side frames, support structures, equipment stands and modular production line frames where better rigidity and medium-duty support are required.
Q8: How is the price calculated?
The reference price starts from $6.50 per meter. The final price depends on length, quantity, surface finish, cutting, drilling, tapping, packaging and accessories.
Q9: Can Melorae Supply provide a complete modular frame solution?
Yes. Melorae Supply can provide aluminum profiles, connectors, fasteners, casters, leveling feet, panel accessories and custom frame quotations based on drawings, dimensions or application requirements.
Q10: What information should I provide for a quotation?
Please provide the required profile length, quantity, surface finish, application, drawing, sketch or sample photo. If you need a complete frame system, please also provide the frame size, load requirement and accessory requirements.
Reference price starts from $6.50 per meter. The final price depends on profile length, order quantity, surface finish, cutting requirement, drilling, tapping, packaging and accessories. Please contact us with your required length, quantity, drawing or application details for an accurate quotation.

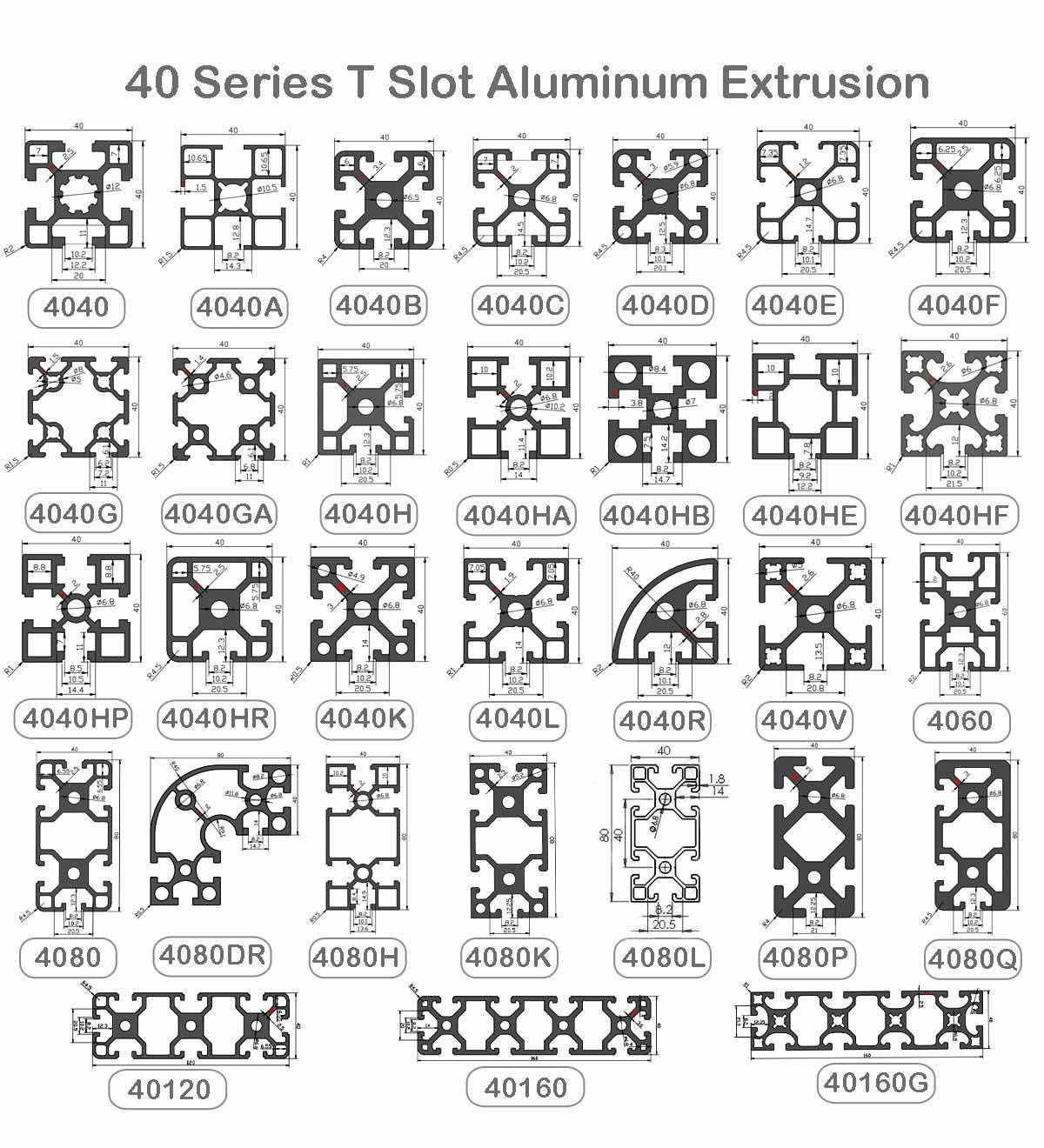

Related Aluminum Profile Options
