4040 Aluminum Extrusion for Heavy-Duty 40×40 T-Slot Modular Frame Systems
The 4040 aluminum extrusion profile is a 40mm × 40mm heavy-duty modular aluminum profile designed for industrial machine frames, automation equipment structures, workstations, safety guarding systems, conveyor supports, equipment bases and custom modular frame systems. Compared with 2020 and 3030 aluminum extrusion, the 4040 profile provides higher strength, better rigidity and improved stability for larger or more demanding frame applications.
This 4040 aluminum T-slot profile features open T-slots that allow T-slot nuts, corner brackets, bolts, internal connectors, joining plates, panels, sensor mounts, leveling feet, caster wheels and other modular accessories to be installed or adjusted easily. The T-slot design makes the structure flexible, reusable and easy to modify without welding. This is useful for factories, workshops and automation projects that require adjustable and expandable frame systems.

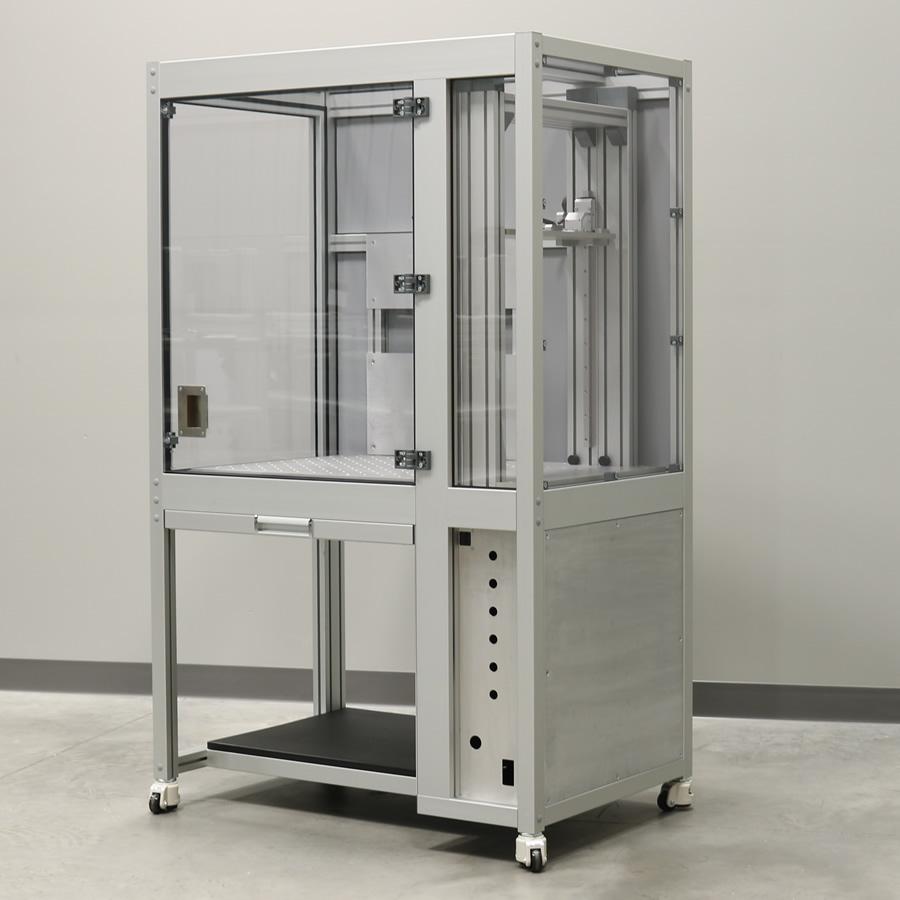

The 4040 aluminum extrusion profile is widely used in industrial machine frames, automation equipment frames, heavy-duty workstation structures, safety guarding systems, conveyor support frames, testing equipment bases, robotic cell structures, assembly line fixtures, material handling systems, storage racks and custom modular aluminum structures. It is suitable for applications where stronger support and better structural stability are required.
For industrial users, 4040 aluminum extrusion is a practical choice for machine frames, protective guards, equipment bases, production line structures and modular workstation systems. It offers a strong balance between load capacity, assembly flexibility, clean appearance and long-term usability. For lighter and compact frames, 2020 or 3030 aluminum extrusion may be sufficient. For larger structures, long-span frames or heavier load requirements, 4040, 4080 or larger aluminum profiles may be recommended.
The 4040 aluminum extrusion profile can be supplied with matching accessories, including T-slot nuts, corner brackets, bolts, internal connectors, end caps, joining plates, leveling feet, caster wheels, panel mounting parts and other modular frame components. These accessories help customers build a complete aluminum frame system instead of purchasing only individual aluminum profiles. Custom cutting, drilling, tapping and accessory matching are available according to drawings, sketches, sample photos or required dimensions.
The standard surface finish is silver anodized, providing a clean industrial appearance and improved corrosion resistance for workshop, factory and equipment applications. Black anodized finish and other surface options may be available depending on order quantity and project requirements. The modular T-slot structure allows the frame to be assembled, modified, expanded or rebuilt more easily than welded steel structures.
Melorae Supply focuses on modular industrial structure solutions, not only individual aluminum extrusion profiles. We can support customers with aluminum profile selection, connector matching, custom length cutting and complete frame quotation for machine frames, workstations, safety guards, conveyor frames, storage systems, assembly line fixtures, automation support structures and custom modular industrial frames.
Key Features of 4040 Aluminum Extrusion
- 40mm × 40mm heavy-duty aluminum T-slot extrusion profile
- Stronger and more rigid than 2020 and 3030 aluminum extrusion
- Suitable for machine frames, workstations and automation structures
- Compatible with T-slot nuts, brackets, fasteners and connectors
- Clean anodized surface for corrosion resistance and easy maintenance
- Easy to cut, drill, tap, assemble, modify and expand
- Custom length cutting and accessory matching available
- Suitable for industrial, workshop, automation and heavy-duty modular frame applications
Applications
- Industrial machine frames
- Automation equipment frames
- Heavy-duty workstation frames
- Safety guarding systems
- Conveyor support frames
- Equipment base structures
- Robotic cell frames
- Assembly line fixtures
- Material handling systems
- Storage rack structures
- Testing equipment frames
- Custom modular aluminum structures
Specifications
- Product Name: 4040 Aluminum T-Slot Extrusion Profile
- SKU: AP-4040-EU

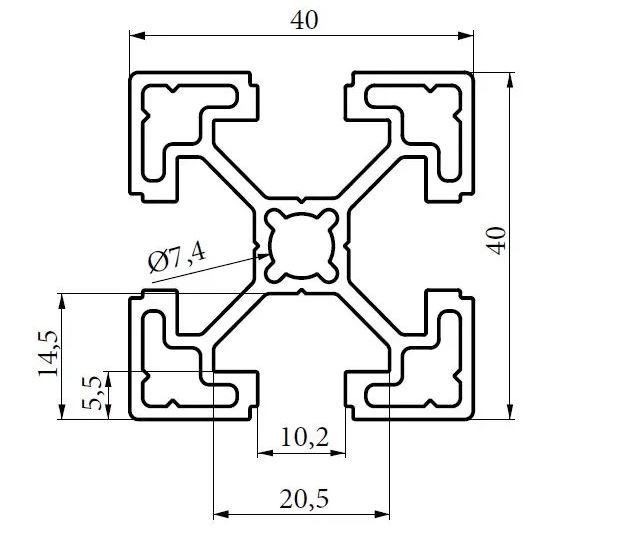

- Profile Size: 40mm × 40mm
- Series: 4040 Series
- Standard: European Standard
- Slot Type: T-Slot
- Material: Aluminum Alloy
- Common Grade: 6063-T5
- Surface Finish: Silver Anodized
- Optional Finish: Black Anodized
- Standard Length: 6.02m
- Custom Length: Available
- Approx. Weight: Varies by profile wall thickness and series
- Processing Options: Cutting, drilling, tapping, connector matching and frame assembly
- Typical Applications: Machine frames, safety guards, workstations, automation equipment frames, conveyor supports and heavy-duty modular structures
Related Modular Frame Solutions
For more aluminum profile options, visit our Aluminum Profiles category. For complete assembly solutions, you can also check our Connectors & Accessories category for T-slot nuts, corner brackets, fasteners and modular frame hardware.
For compact and light-duty structures, 2020 aluminum extrusion may be suitable. For medium-duty workstations and equipment frames, 3030 aluminum extrusion may be recommended. For stronger industrial machine frames, safety guards and automation structures, 4040 aluminum extrusion provides better rigidity and structural support.
For general background information about aluminum extrusion materials, you may also refer to this engineering reference from Wikipedia.
FAQ
Q1: What is 4040 aluminum extrusion used for?
4040 aluminum extrusion is used for industrial machine frames, automation equipment frames, heavy-duty workstations, safety guarding systems, conveyor supports, equipment bases, robotic cell frames and custom modular structures.
Q2: What does 4040 mean in aluminum extrusion?
4040 means the aluminum profile has a 40mm × 40mm cross section. It is larger and stronger than 2020 and 3030 aluminum extrusion and is commonly used for heavy-duty modular framing systems.
Q3: What is the difference between 3030 and 4040 aluminum extrusion?
3030 aluminum extrusion is suitable for medium-duty frames and workstations, while 4040 aluminum extrusion provides higher rigidity and better support for machine frames, safety guards, conveyor supports and heavier industrial structures.
Q4: Is 4040 aluminum extrusion suitable for machine frames?
Yes. 4040 aluminum extrusion is commonly used for machine frames, automation equipment frames, protective guards, equipment bases and industrial workstation structures. For very large or long-span frames, 4080 or larger profiles may be recommended.
Q5: Can the 4040 aluminum extrusion be cut to custom length?
Yes. Custom cutting is available. Drilling, tapping and accessory matching can also be provided according to project requirements.
Q6: What accessories are compatible with 4040 T-slot profiles?
Common accessories include T-slot nuts, corner brackets, bolts, internal connectors, joining plates, end caps, leveling feet, caster wheels and panel mounting parts.
Q7: How is the price calculated?
The reference price starts from $6.80 per meter. The final price depends on length, quantity, surface finish, cutting, drilling, tapping, packaging and accessories.
Q8: Can Melorae Supply provide a complete modular frame solution?
Yes. Melorae Supply can provide aluminum profiles, connectors, fasteners, casters, leveling feet, panel accessories and custom frame quotations based on drawings, dimensions or application requirements.
Q9: What information should I provide for a quotation?
Please provide the required profile length, quantity, surface finish, application, drawing, sketch or sample photo. If you need a complete frame system, please also provide the frame size, load requirement and accessory requirements.
Reference price starts from $6.80 per meter. The final price depends on profile length, order quantity, surface finish, cutting requirement, drilling, tapping, packaging and accessories. Please contact us with your required length, quantity, drawing or application details for an accurate quotation.

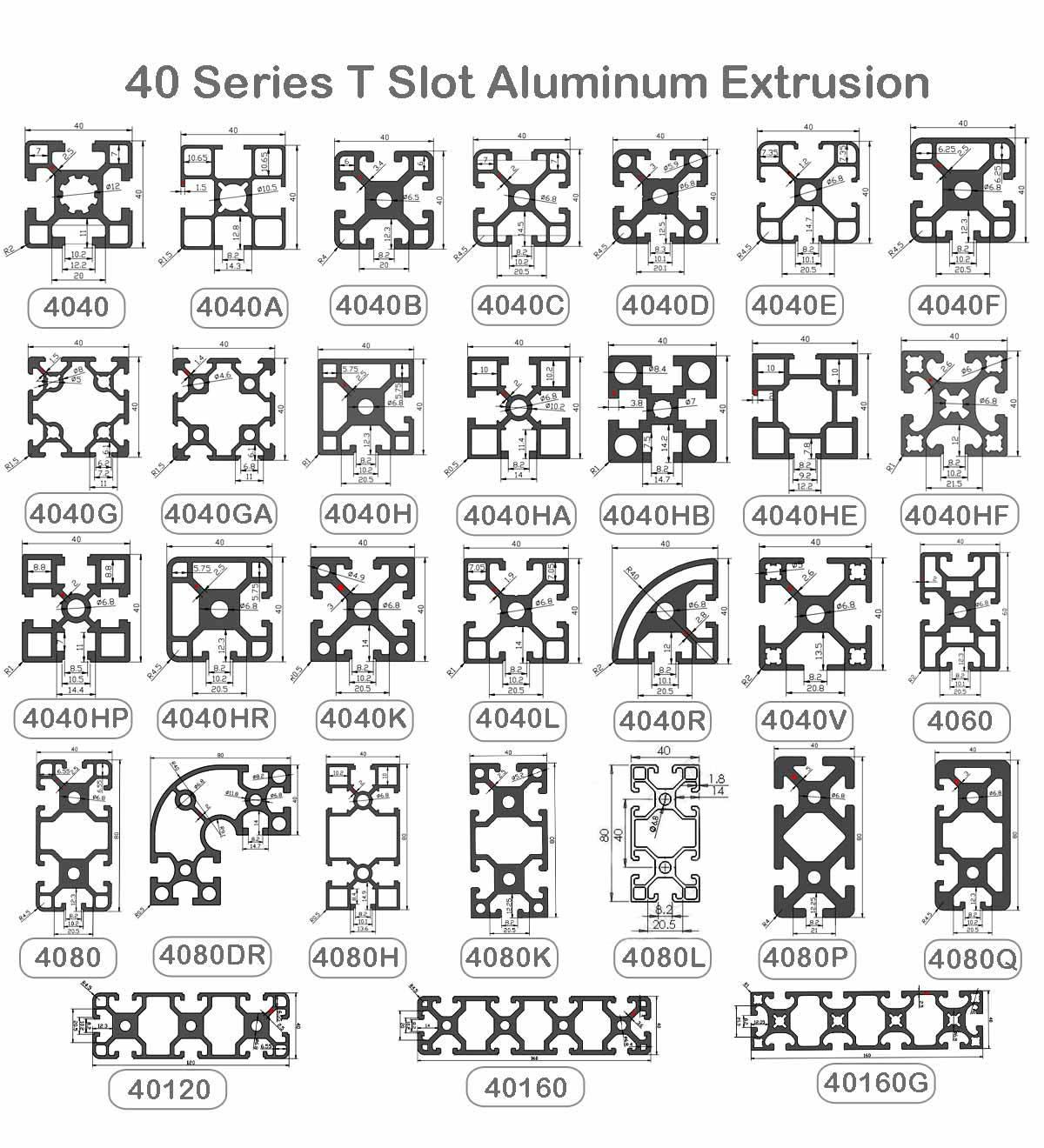

Related Aluminum Profile Options
Melorae Supply provides different T-slot aluminum extrusion profiles for modular frames, workbenches, automation equipment, machine guards, carts, racks and custom industrial structures. You can compare different profile sizes based on load requirement, frame size and application.
- 2020 Aluminum Extrusion Profile – compact profile for light-duty frames and small structures.
- 2040 Aluminum Extrusion Profile – rectangular profile for modular workbench and machine frame applications.
- 3030 Aluminum Extrusion Profile – versatile square profile for industrial frames, carts and racks.
- 4040 Aluminum Extrusion Profile – common industrial profile for workbenches, machine frames and equipment structures.
- 4080 Aluminum Extrusion Profile – strong rectangular profile for machine bases and heavy modular frames.
- 40120 Aluminum Extrusion Profile – reinforced profile for large structural frames and heavy-duty applications.
- View All Aluminum Profile Systems – compare available T-slot aluminum extrusion profiles.
Request a Custom Aluminum Profile Quote
If you need aluminum profiles cut to length, machined, drilled, tapped or matched with accessories, please send your required profile model, length, quantity, drawing, machining requirements and delivery destination. You can contact us through our Contact Us page, email us at sales@meloraesupply.com, or reach us on WhatsApp at +86 153 0757 4099.
